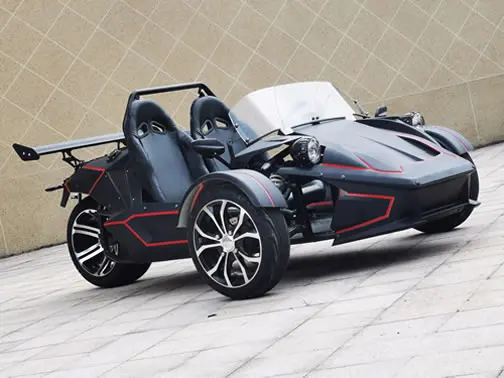

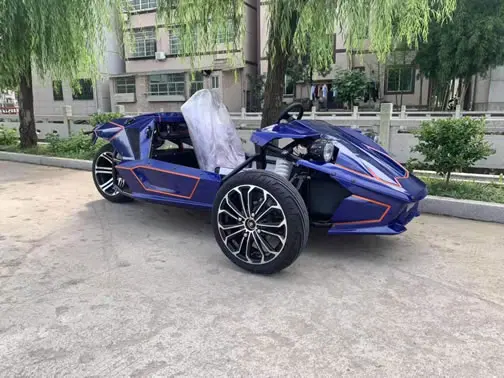

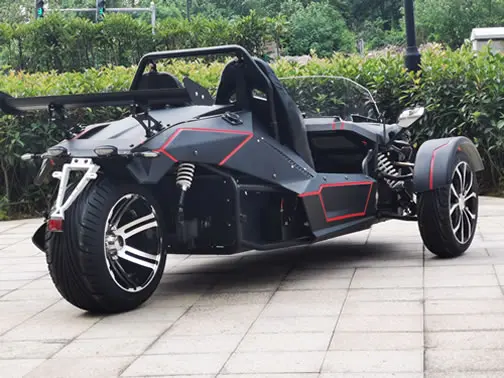

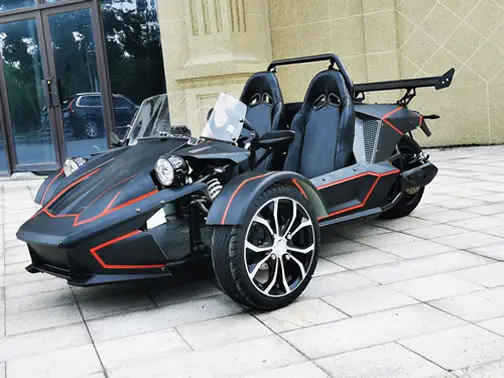

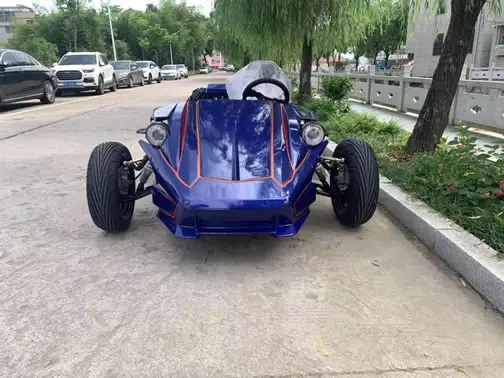

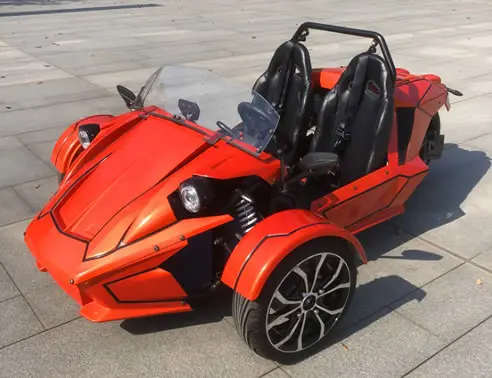

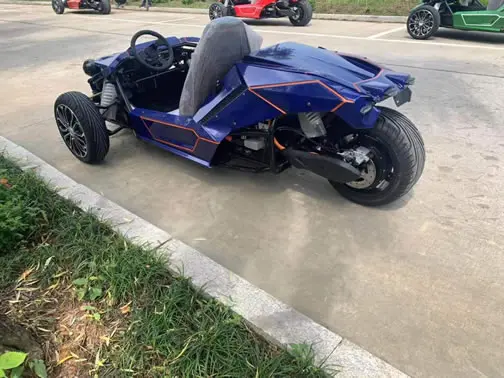

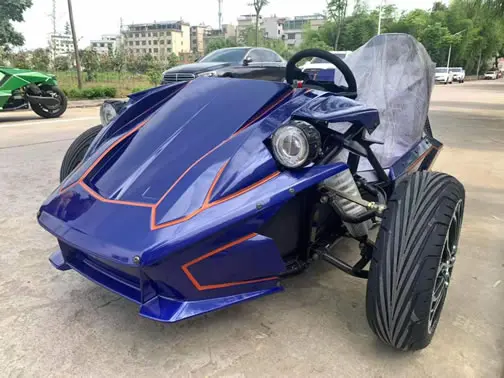

ELE® ELECTRIC TWO (2) SEAT SCOOTER TRIKE
- COLOR: Orange | Black | Dark green | Blue | Red

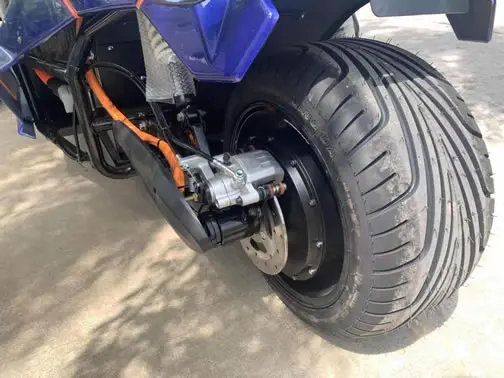

- MOTOR： 72V 6KW Wheel Hub DC Motor
- CONTROLLER: 48V-96V 460A ,Bus current max 460A,phase current max 1200A
- BATTERY IN THIS TRIKE: 72v 120AH ,for BMS 5 Second max amp draw is 500A ,Continuous amp | Draw is 300A | BMS settings is 210A | 6,000W 72V 120AH
- Three Optional Batteries are available | Different batteries - Different Pricing Model
- 10,000W 72V 120AH Battery - Contact us for Pricing Model.
- 10,000W 72V 150AH battery - Contact us for Pricing Model.
- Three Optional Batteries are available | Different batteries - Different Pricing Model
- CHARGING: 84.2V 20A on board (220V input) 16A（110V input)
- DRIVING: Motor direct drive at rear axle

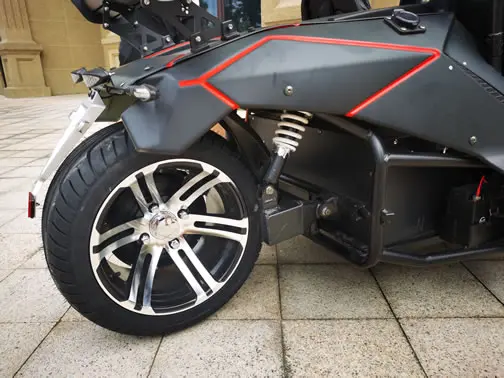

- SUSPENSION: F/R Double A-arm independent suspension
- BATTERY-LIFE: 800 Cycles
- MAX.LOADING CAPACITY: 300KG | MIN.GROUND CLEARANCE: 180mm
- BREAK TYPE(F/R): F/R hydraulic disc and handle park brake
- MAX SPEED: 120km/h (72v 120AH /150AH ) | 75km/h (72v 80AH)
- DISTANCE RANGE: 110km-120km Chassis(72V 120ah) | 140km-150km ( 72v 150ah) | 70km-80km(72v 80Ah)
- CHARGER TIME: 4-7 hours
- FRONT WHEELS: 185/30-R14 | REAR WHEELS: 295/30-R14 | WHEELBASE: 1,450mm
- FRONT HANGING: Double Arm-Swing
- SEATS HEIGHT: 19mm -（seat can be removed )
- 20FCL: 12pcs | 40HQ: 24pcs
- PRODUCT DIMENSIONS: 2,680x1,630x770mm | CARTON DIMENSIONS: 2815x1130x700mm
- WARRANTY: One year warranty for motor and controller
- Customer Branded | OEM | ODM Opportunites are available - Contact Us

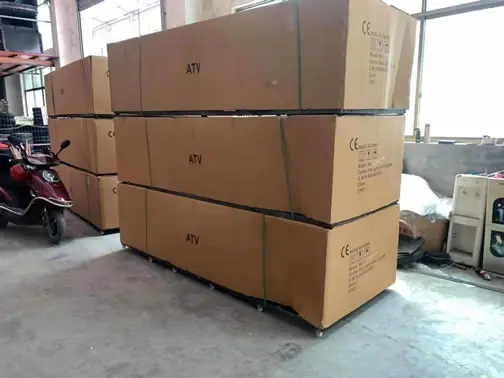

- PACKAGING: With strong iron frame and cardboard shell | Carton | Palletized
USE THIS LINK - ALL AVAILABLE MOBILITY PRODUCTS TO LEARN ABOUT OTHER SIMULAR ITEMS.
MINIMUM ORDER QUANTITY: 10 UNITS @ $5,382.00 PER UNIT
Please Contact Us for purchase other than the MOQ and about our FUEL VERSIONS
ADDITIONAL INFORMATION ABOUT THIS PRODUCT
** LEARN MORE ABOUT THE ELE® ELECTRIC 2-SEAT SCOOTER TRIKE **
Please take a moment to view the videos below
| RED SCOOTER TRIKE TEST VIDEO |
| GREEN SCOOTER TRIKE TEST VIDEO |
| ORANGE SCOOTER TRIKE TEST VIDEO |
